High Power RF Flange Resistor 1200W Ceramic Composition Wide Operating Temperature

Name: High Power RF Flange Resistor 1200W Ceramic Composition Wide Operating Temperature
Brand: BONENS
Price: 1 USD

Wholesale High Power RF Flange Resistor 1200W Ceramic Composition Wide Operating Temperature from china suppliers

Material : Ceramic composition

Resistance : 1 ~500Ω, 1 ~500Ω

Place of Origin : Sichuan, China

Brand Name : BONENS

Model Number : RIG

Specification : 800w~1200w

Packaging Type : boxed

Package / Case : plastic bag

Description : Terminals 10ohm 50ohm rf resistor

Resistance Tolerance : ±5%

item name : RIG High power Resistors RF resistor 1000 watt 50 ohm 100 ohm

Technology : Ceramic Composition

Package Type : Package Type

Temperature Coefficient : ±300*10-6/°C

Operating Temperature : -55°C~+165°C

Power (Watts) : 1W-1200W

Rated Power : 800W-1200W

MOQ : 100

Type : RF flange resistor

Contact Now

High Power RF Flange Resistor 1200W Ceramic Composition Wide Operating Temperature

Product Description

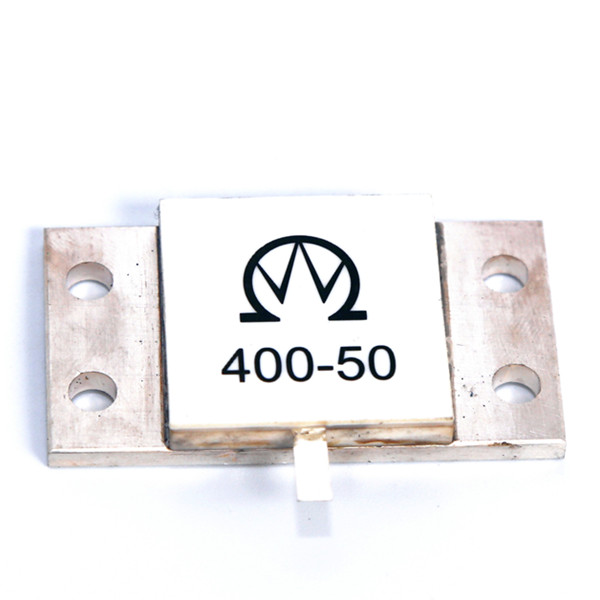

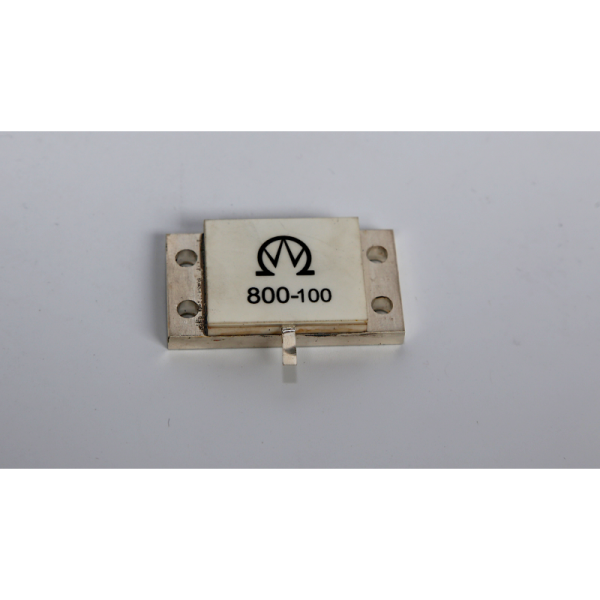

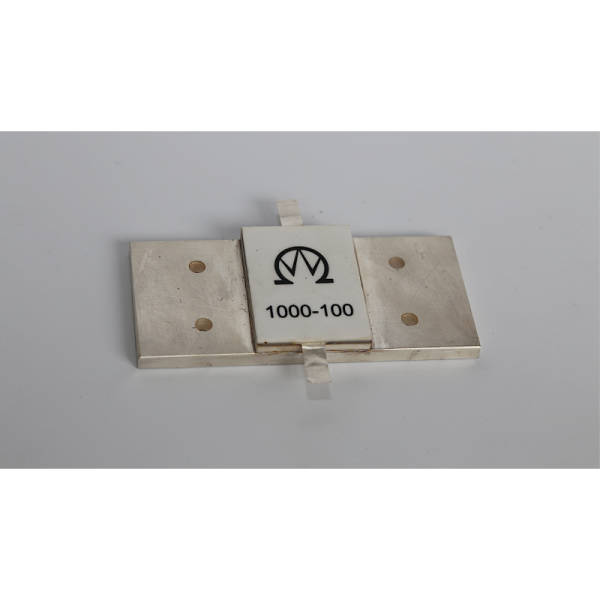

100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor picture

100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor drawing

All RF flange resistor can do with one terminal or Two terminals

100W one terminal resistor drawing

150W two terminals rf resistor drawing

250W 10ohm 50ohm two terminals rf resistor drawing

400W 10ohm 50ohm two terminals rf resistor drawing

500W 10ohm 50ohm one terminals rf resistor drawing

600w 10ohm 50ohm one terminals rf resistor drawing

800W 10ohm 50ohm two terminals rf resistor drawing

1000W 10ohm 50ohm One terminals rf resistor drawing

Specification

100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor Parameters

Electrical Characteristics
Range of nominal resistance	1 ~500Ω
Range of nominal resistance	±5%
Frequency range	0~2GHz
Standing wave ratio	1.2~1.3
Insulation resistance	≥ 1GΩ
Withstand voltage	500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power	1~1200W (70°C)
Temperature range	-55°C~+165°C
TCR	±300×10-6/°C
Temperature shock (-55°C/+125°C, 3 times)	ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)	ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)	ΔR≤±5%R
Load life (96)	ΔR≤±5%
Collision	ΔR≤±3%R
Physical Characteristics
Terminal strength(10N,5S)	No loose and fall off
Solderability(240℃,3s)	Tin layer covering area of 95%

Packing & Delivery

1200W High Power

Ceramic Composition

Wide Temperature Range
